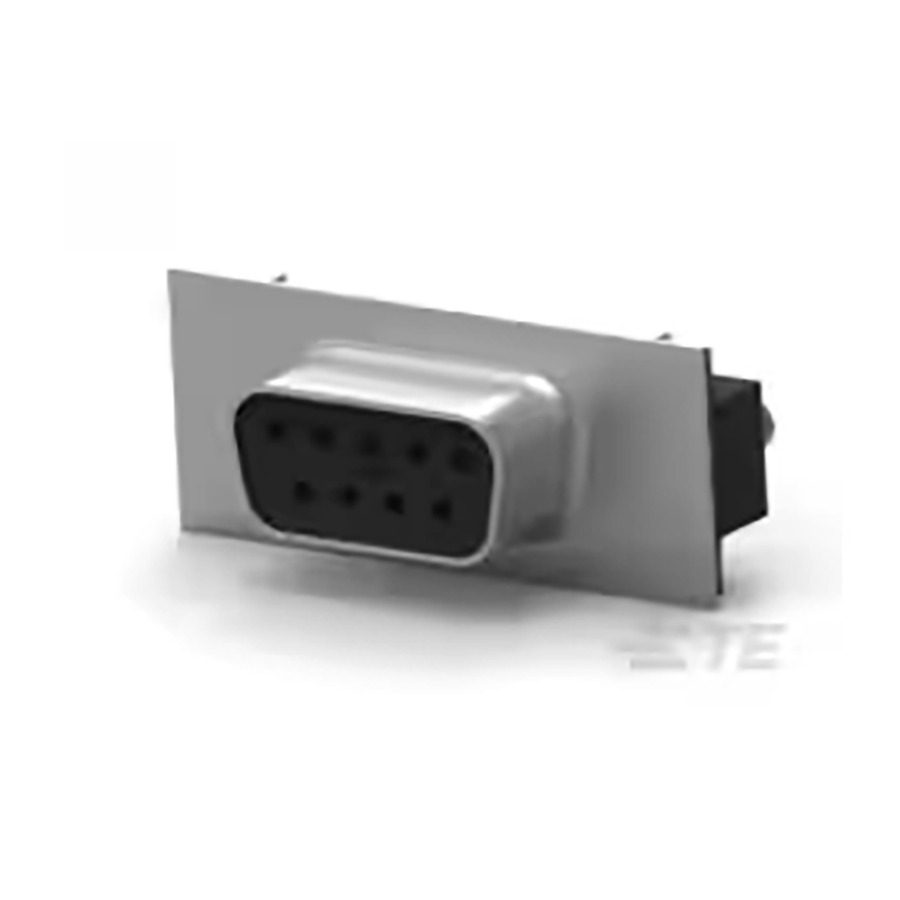

2-5747706-0
Manufacturer:
TE Connectivity
Mfr.Part #:
2-5747706-0
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:9 Solder Receptacle
| Parameter | Value |
|---|---|
| Length | 30.7 mm |
| Width | 12.1 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Height | 12.5476 mm |
| Material | Metal |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 12.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.7432 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 9 |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 9 |
| ELV | Compliant |
| Body Material | Metal, Steel |
| Hole Diameter | 3.0734 mm |
| Max Supply Voltage (DC) | 250 V |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 1227
Distributors
pcbx
pcbxUnit Price$4.06177
Ext.Price$4.06177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.06177 | $4.06177 |
| 10 | $3.65483 | $36.54830 |
| 25 | $3.42572 | $85.64300 |
| 50 | $3.21097 | $160.54850 |
| 100 | $3.00968 | $300.96800 |
| 300 | $2.82101 | $846.30300 |
| 500 | $2.64417 | $1322.08500 |
| 1000 | $2.47844 | $2478.44000 |
